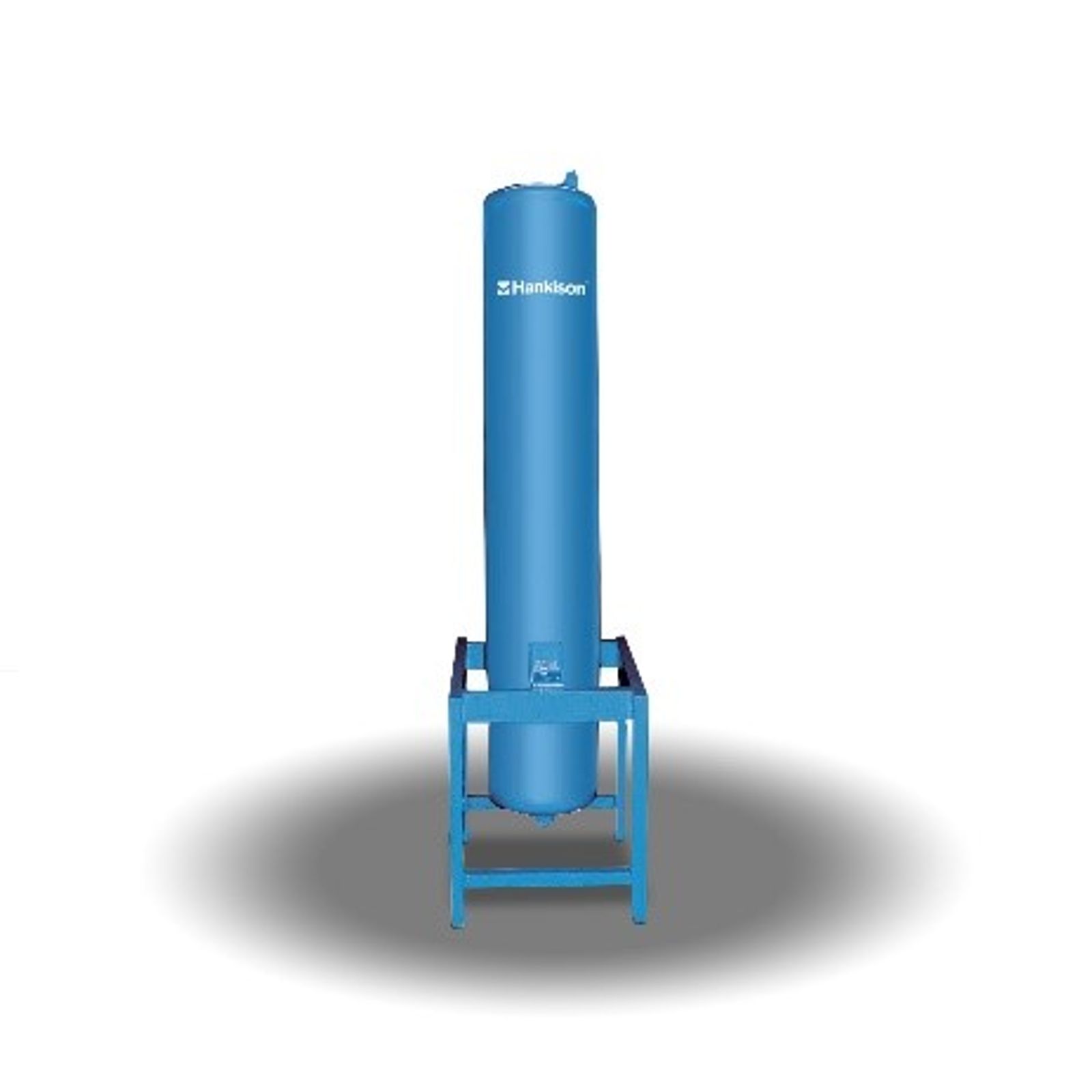

Activated Carbon Tower – AK Series
The activated carbon filter/ tower is designed to eliminate oil residue from compressed air.
Because this tower is filled with high quality activated carbon, it will not only filter the air from oil drops, but also from the oil vapor up to 0,003 mg/m³.
They are highly reliable and are easily integrated in your compressed air installation. With a wide range of flow rates from 70 up to 9300 m³/h, Hankison has a solution for almost every size of application.
Teilen
- Activated Carbon Adsorber
- Economical regeneration process
- No additional installation costs
- Energy saving by load-dependent control
- Mechanically stable, low-dusting activated carbon
|
Model |
Part-No. |
Flow Rate |
Connection |
Dimensions (mm) | ||
|
|
|
m³/h |
|
A |
B |
C |
|
AK 71 |
33006000 |
70 |
R 1/2" |
350 |
750 |
1.950 |
|
AK 110 |
33011000 |
110 |
R 3/4" |
350 |
750 |
1.950 |
|
AK 160 |
33016000 |
160 |
R 3/4" |
350 |
750 |
1.970 |
|
AK 200 |
33021000 |
200 |
R 1" |
350 |
750 |
1.980 |
|
AK 300 |
33026000 |
300 |
R 1" |
550 |
750 |
1.980 |
|
AK 450 |
33031000 |
450 |
R11/2" |
550 |
750 |
1.990 |
|
AK 650 |
33036000 |
650 |
R 11/2" |
550 |
750 |
1.990 |
Features
- Activated Carbon Adsorber
- Economical regeneration process
- No additional installation costs
- Energy saving by load-dependent control
- Mechanically stable, low-dusting activated carbon
Specifications
|
Model |
Part-No. |
Flow Rate |
Connection |
Dimensions (mm) | ||
|
|
|
m³/h |
|
A |
B |
C |
|
AK 71 |
33006000 |
70 |
R 1/2" |
350 |
750 |
1.950 |
|
AK 110 |
33011000 |
110 |
R 3/4" |
350 |
750 |
1.950 |
|
AK 160 |
33016000 |
160 |
R 3/4" |
350 |
750 |
1.970 |
|
AK 200 |
33021000 |
200 |
R 1" |
350 |
750 |
1.980 |
|
AK 300 |
33026000 |
300 |
R 1" |
550 |
750 |
1.980 |
|
AK 450 |
33031000 |
450 |
R11/2" |
550 |
750 |
1.990 |
|
AK 650 |
33036000 |
650 |
R 11/2" |
550 |
750 |
1.990 |
